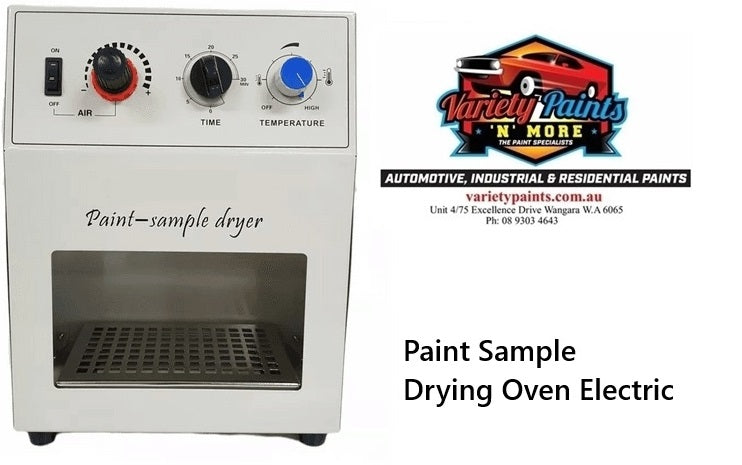

Paint Sample Drying Oven Electric (BUY IN PRODUCT)

The Paint Sample Dryer blends infrared heating with a timed high-airflow system to deliver fast, consistent curing of both waterborne and solvent‑based paints. Designed to significantly speed up preparation cycles, it’s ideal for paint booths, colour labs and body shops requiring fast turnarounds.

Key Features:

Dual‑Mode Drying – Combines infrared lamp heating (300 W) with air-blow circulation for thorough, even drying.

Wide Compatibility – Suitable for both water-based and solvent-based paint systems, delivering reliable results across paint types.

Adjustable Control Panel – Features a temperature gauge, timer (up to 30 minutes) and an air valve for full operator control.

Temperature Range – Adjustable from 35 °C to 90 °C, supporting a variety of curing requirements.

Durable Design – Lamp life rated at approximately 6,000 hours, with both CE and UL compliant switchgear.

Mounting Options – Flexible installation as either wall-mounted or free‑standing unit, depending on your shop layout.

Comprehensive Kit Included – Comes with a multi-sample holder and sample films for testing cards or panels.

Power Specs – Operates on input voltage of 110–230 V / 50–60 Hz, rated at 300 W lamp power.

Applications:

Auto body shops preparing paint swatches or panels

Colour matching labs testing new formulations

Industrial operations requiring small-batch drying

Use it to quickly dry touch-up cards, finish samples, spray‑out panels, and test boards – saving time while ensuring accurate colour matching.

In Summary:

The Paint Sample Dryer is a reliable, compact solution for accelerated paint curing—delivering consistent results for both waterborne and solvent-based applications. Its user-adjustable controls, dual heating modes, and flexible setup make it a standout tool for enhancing workflow in any professional finishing environment.

* The drying oven can using a combination of infrared heating and airblow system for an optimum curing result.
* Drying oven is suited for drying water-based paints as well as solvent-based paints.
* Drying oven has an air valve, a temperature gauge and a timer.
* Powder Coating - Grey or Blue
* Input Voltage: 110-230V / 60-50HZ
* Lamp Power(W): 300
* Lamp working time: life up to 6000 hours.
* Timing Range(min): 30
* Temperature(℃): 35-90
* Air Pressure: 3-8bar
* With Samples Holder and Samples film
* Wall-mounted or Stand
* Switch: CE/UL certified
